Ventilation & Smoke Control

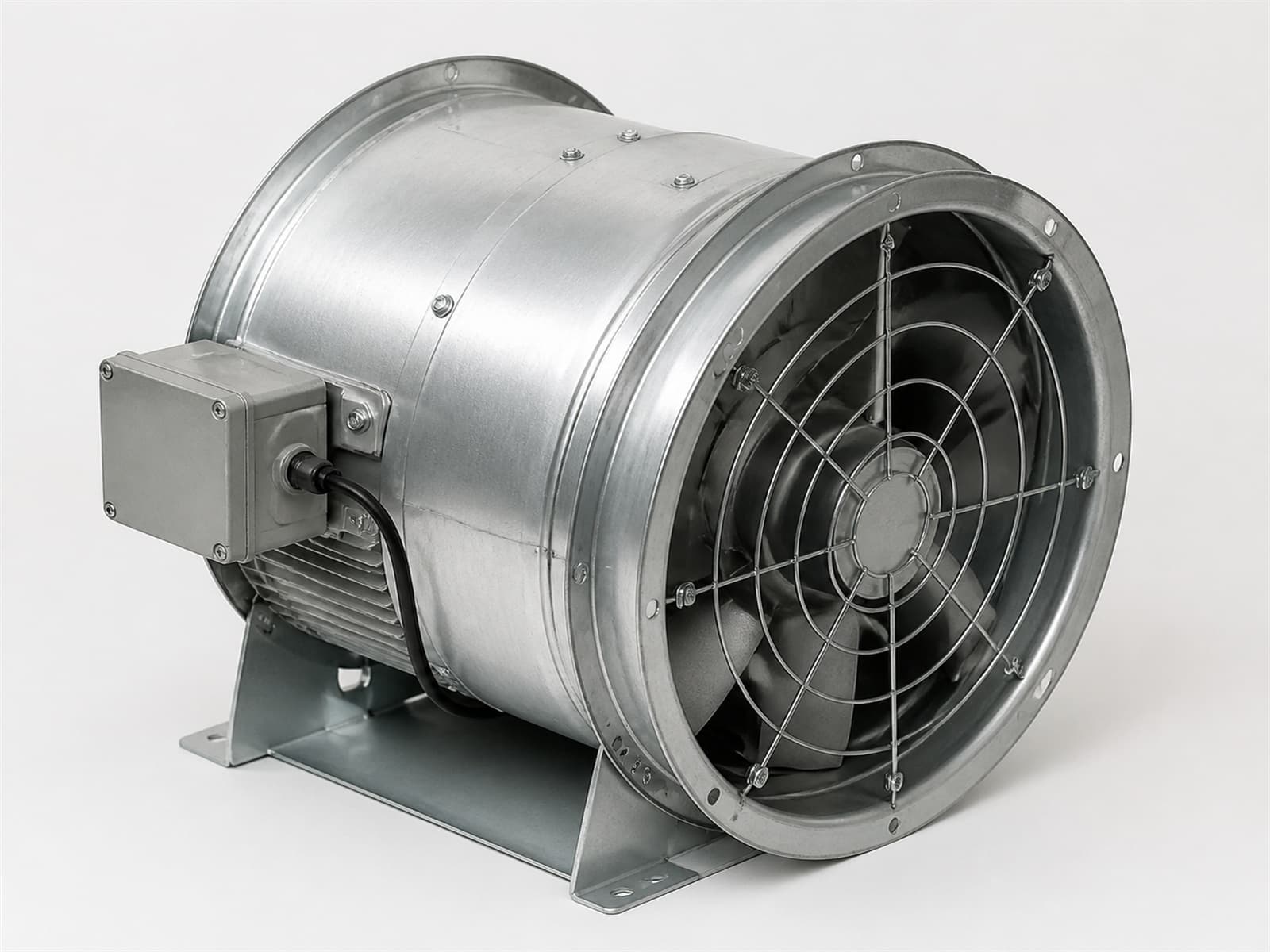

Axial Fans

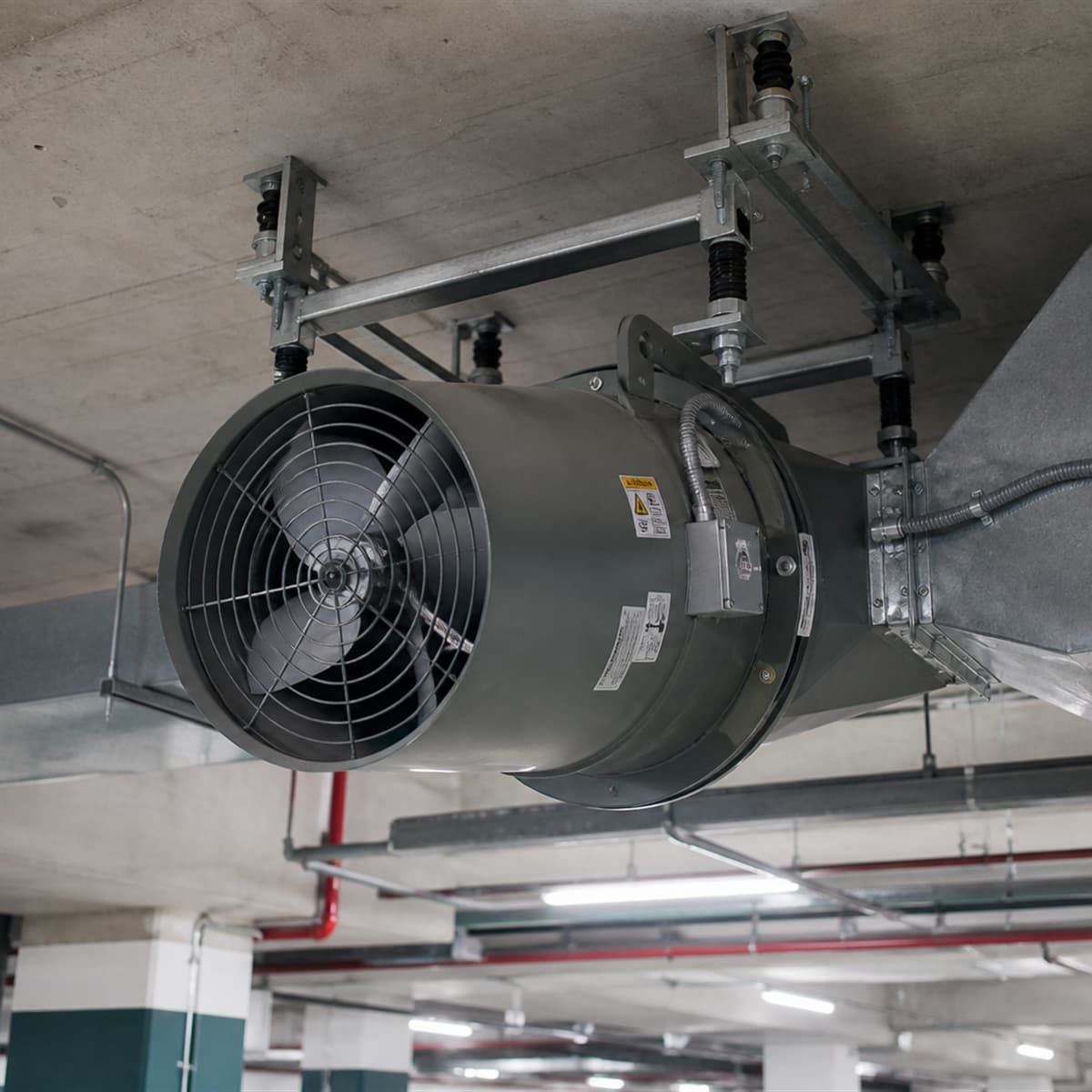

Duct-mounted and jet axial fans for garage, tunnel, and general ventilation.
Specifications
Category-typical operating ranges shown below. SKU-specific test data is confirmed during engineering review.
| Parameter | Value |
|---|---|
| Airflow Range | 1,000 – 80,000 m³/h |
| Static Pressure | 100 – 1,500 Pa |
| Smoke-Rated Duty | 300°C / 2h — Pending Verification per project cert |
| Motor Protection | IP54/IP55 typical |
Performance Curve
Airflow / static pressure performance curve — Pending Verification. Unit-specific test data is issued per confirmed order configuration.
Drawings & Documentation
CAD / dimensional drawing — Pending Verification
Category
Ventilation & Smoke Control
Axial and centrifugal fan systems for general ventilation, exhaust, and life-safety smoke extraction duty.
